1. Choose the correct option.

Question 1.
The range of temperature in a clinical thermometer, which measures the temperature of the human body, is
(A) 70 ºC to 100 ºC
(B) 34 ºC to 42 ºC
(C) 0 ºF to 100 ºF
(D) 34 ºF to 80 ºF
Answer:
(B) 34 ºC to 42 ºC

Question 2.
A glass bottle completely filled with water is kept in the freezer. Why does it crack?
(A) Bottle gets contracted
(B) Bottle is expanded
(C) Water expands on freezing
(D) Water contracts on freezing
Answer:
(C) Water expands on freezing

Question 3.
If two temperatures differ by 25 °C on Celsius scale, the difference in temperature on Fahrenheit scale is
(A) 65°
(B) 45°
(C) 38°
(D) 25°
Answer:
(B) 45°

Question 4.
If α, β and γ are coefficients of linear, area l and volume expansion of a solid then
(A) α: β:γ 1:3:2
(B) α:β:γ 1:2:3
(C) α:β:γ 2:3:1
(D) α:β:γ 3:1:2
Answer:
(B) α:β:γ 1:2:3

Question 5.
Consider the following statements-
(I) The coefficient of linear expansion has dimension K^-1
(II) The coefficient of volume expansion has dimension K^-1
(A) I and II are both correct
(B) I is correct but II is wrong
(C) II is correct but I is wrong
(D) I and II are both wrong
Answer:
(A) I and II are both correct

Question 6.
Water falls from a height of 200 m. What is the difference in temperature between the water at the top and bottom of a water fall given that specific heat of water is 4200 J kg^-1 °C^-1?
(A) 0.96 °C
(B) 1.02 °C
(C) 0.46 °C
(D) 1.16 °C
Answer:
(C) 0.46 °C

2. Answer the following questions.

Question 1.
Clearly state the difference between heat and temperature?
Answer:

Question 2.
How a thermometer is calibrated?
Answer:

1. For the calibration of a thermometer, a standard temperature interval is selected between two easily reproducible fixed temperatures.
2. The fact that substances change state from solid to liquid to gas at fixed temperatures is used to define reference temperature called fixed point.
3. The two fixed temperatures selected for this purpose are the melting point of ice or freezing point of water and the boiling point of water.
4. This standard temperature interval is divided into sub-intervals by utilizing some physical property that changes with temperature.
5. Each sub-interval is called as a degree of temperature. Thus, an empirical scale for temperature is set up.

Question 3.
What are different scales of temperature? What is the relation between them?
Answer:

1. Celsius scale:
   • The ice point (melting point of pure ice) is marked as O °C (lower point) and steam point (boiling point of water) is marked as 100 °C (higher point).
   • Both are taken at one atmospheric pressure.
   • The interval between these points is divided into two equal parts. Each of these parts is called as one degree celsius and it is ‘written as 1 °C.
2. Fahrenheit scale:
   • The ice point (melting point of pure ice) is marked as 32 °F and steam point (boiling point of water) is marked as 212 °F.
   • The interval between these two reference points is divided into 180 equal parts. Each part is called as degree fahrenheit and is written as 1 °F.
3. Kelvin scale:
   • The temperature scale that has its zero at -273.15 °C and temperature intervals are same as that on the Celsius scale is called as kelvin scale or absolute scale.
   • The absolute temperature, T and celsius temperature, T_C are related as, T = T_C + 273.15
     eg.: when T_C = 27 °C,
     T = 27+273.15 K = 300.15 K

1. O °C. but each line intersects the temperature axis at the same point, i.e., at absolute temperature (-273.15 °C).
2. Similarly graph at constant pressure for three different ideal gases A, B and C extrapolate to the same temperature intercept -273.15 °C i.e., absolute zero temperature.
3. It is seen that all the lines for different gases Cut the temperature axis at the same point at -273.15 °C.
4. This point is termed as the absolute zero of temperature.
5. It is not possible to attain a temperature lower than this value. Even to achieve absolute zero temperature is not possible in practice.
   [Note: The point of zero pressure or zero volume does not depend on am specific gas.]

Question 5.
Derive the relation between three coefficients of thermal expansion.
Answer:

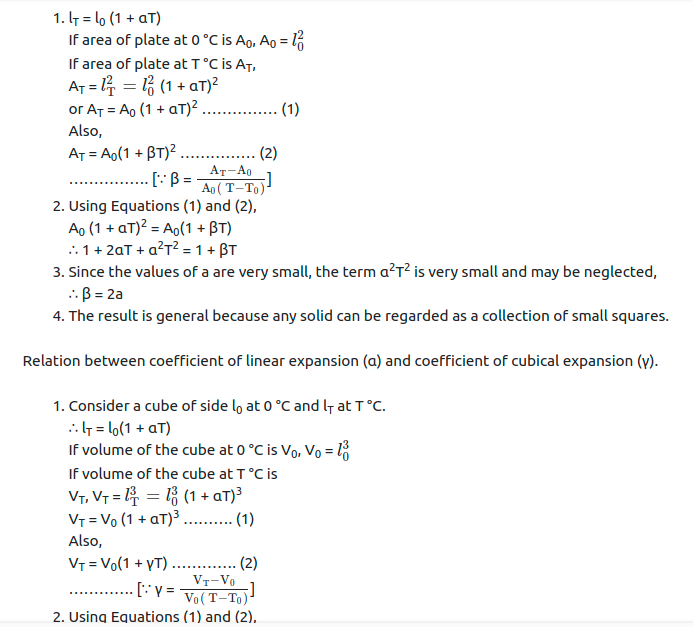

Consider a square plate of side l₀ at 0 °C and h at T °C.

1. The triple point of water is that point where water in a solid, liquid and gas state co-exists in equilibrium and this occurs only at a unique temperature and a pressure.

Question 10.
Explain the term ‘steady state’.
Answer:

1. When one end of a metal rod is heated, the heat flows by conduction from hot end to the cold end.


1. As a result, the temperature of every section of the rod starts increasing.
2. Under this condition, the rod is said to be in a variable temperature state.
3. After some time, the temperature at each section of the rod becomes steady i.e., does not change.
4. Temperature of each cross-section of the rod now becomes constant though not the same. This is called steady state condition.

Question 11.
Define coefficient of thermal conductivity. Derive its expression.
Answer:
Coefficient of thermal conductivity of a material is defined as the quantity of heat that flows in one second between the opposite faces of a cube of side 1 m, the faces being kept at a temperature difference of 1°C (or 1 K).

Expression for coefficient of thermal conductivity:

1. Under steady state condition, the quantity of heat ‘Q’ that flows from the hot face at temperature T₁ to the cold face at temperature T₂ of a cube with side x and area of cross-section A is
   • directly proportional to the cross-sectional area A of the face. i.e.. Q ∝ A
   • directly proportional to the temperature difference between the two faces i.e., Q ∝ (T₁ – T₂)
   • directly proportional to time t (in seconds) for which heat flows i.e.. Q ∝ t
   • inversely proportional to the perpendicular distance x between hot and cold faces i.e., Q ∝ 1/x
2. Combining the above four factors, we have the quantity of heat

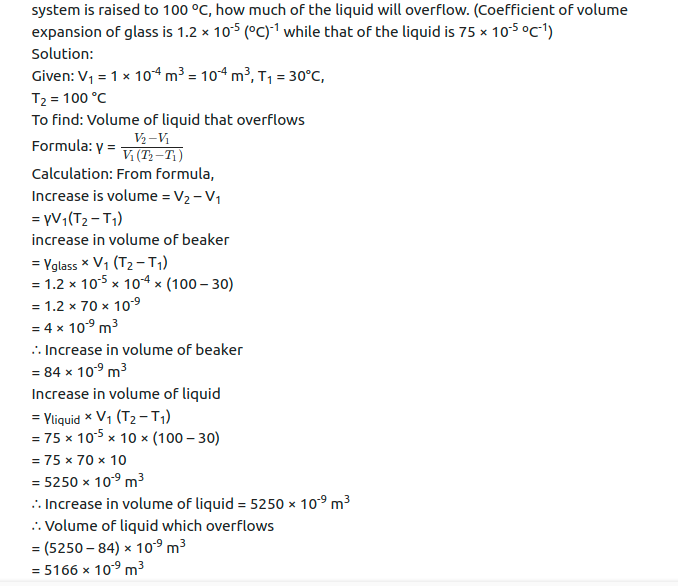

= 0.5166 × 10^-7 m³
Volume of liquid that overflows is 0.5166 × 10^-7 m³.
[Note: The answer given above is presented considering standard conventions of writing number with its correct order of magnitude.]

Question 2.
Which will require more energy, heating a 2.0 kg block of lead by 30 K or heating a 4.0 kg block of copper by 5 K? (s_lead = 128 J kg^-1 K^-1, s_copper = 387 J kg^-1 K^-1)
Solution:
Given: m_lead = 2 kg, ∆T_lead = 30 K,
s_lead = 128 J/kg K,
m_Cu =4 kg, ∆T_Cu = 5 K,
s_Cu = 387 J/kg K
To find: Substance requiring more heat energy.
Formula: Q = ms ∆T
Calculation: From formula,
For lead, Q_lead = 2 × 128 × 30 = 7680J
For Copper, Q_Cu = 4 × 387 × 5 = 7740 J
Q_Cu > Q_lead, copper will require more heat energy.
Copper will require more heat energy.

Question 3.
Specific latent heat of vaporization of water is 2.26 × 10⁶ J/kg. Calculate the energy needed to change 5.0 g of water into steam at 100 ºC.
Solution:
Given: L_vap = 2.26 × 10⁶ J/kg
m = 5g = 5 × 10^-3 kg
In this case, no temperature change takes place only change of state occurs.
To find: Heat required to convert water into steam.
Formula: Heat required = mL_vap
Calculation: From formula,
Heat required = 5 × 10^-3 × 2.26 × 10⁶
= 11300J
= 1.13 × 10⁴ J
Heat required to convert water into steam is 1.13 × 10⁴ J
[Note: The answer given above is presented considering standard conventions of writing number with its correct order of magnitude.]

Question 4.

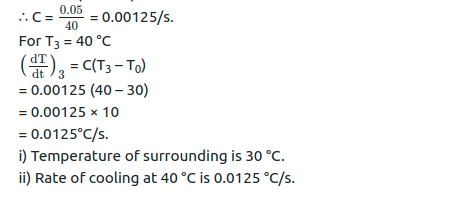

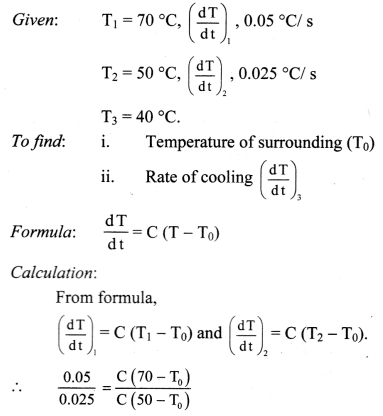

A metal sphere cools at the rate of 0.05 ºC/s when its temperature is 70ºC and at the rate of 0.025 ºC/s when its temperature is 50 ºC. Determine the temperature of the surroundings and find the rate of cooling when the temperature of the metal sphere is 40 ºC.
Solution:

∴ 2(50 – T₀) = 70 – T₀
∴ T₀ = 30 πC
Substituting value of T₀.
0.05 = C (70 – 30)

Question 5.
The volume of a gas varied linearly with absolute temperature if its pressure is held constant. Suppose the gas does not liquefy even at very low temperatures, at what temperature the volume of the gas will be ideally zero?
Answer:
At temperature of -273.15 °C, the volume of the gas will be ideally zero.

Question 6.
In olden days, while laying the rails for trains, small gaps used to be left between the rail sections to allow for thermal expansion. Suppose the rails are laid at room temperature 27 ºC. If maximum temperature in the region is 45 ºC and the length of each rail section is 10 m, what should be the gap left given that α = 1.2 × 10^-5 K^-1 for the material of the rail section?
Solution:
Given. T₁ = 27 °C, T₂ = 45 °C,
L₁ = 10m.
α = 1.2 × 10^-5 K^-1
To find: Gap that should be left (L₂ – L₁)
Formula: L₂ – L₁ = L₁ α(T₂ – T₁)
Calculation: From formula,
L₂ – L₁ = 10 × 1.2 × 10^-5 × (45 – 27)
= 2.16 × 10^-3 m
= 2.16 mm
The gap that should be left between rail sections is 2.16 mm.

Question 7.
A blacksmith fixes iron ring on the rim of the wooden wheel of a bullock cart. The diameter of the wooden rim and the iron ring are 1.5 m and 1.47 m respectively at room temperature of 27 ºC. To what temperature the iron ring should be heated so that it can fit the rim of the wheel (α_iron = 1.2 × 10^-5 K^-1).
Solution:
Given: d_w = 1.5 m, d = 1.47 m, T₁ = 27 °C.
α_i = 1.2 × 10^-5/ K
To find: Temperature (T₂)

Question 10.
An aluminium rod and iron rod show 1.5 m difference in their lengths when heated at all temperature. What are their lengths at 0 °C if coefficient of linear expansion for aluminium is 24.5 × 10^-6 /°C and for iron is 11.9 × 10^-6 /°C
Solution:
Given: (L_T)_i – (L_T)_al = 1.5 m, T₀ = 0 °C
α_al = 24.5 × 10^-6/°C
α_i = 11.9 × 10^-6 /°C
To find: Lengths of aluminium and iron rod (L₀)_al and (L₀)_i
Formula: L_T = L₀[(1 + α(T – T₀)]
Calculation: For T₀ = 0 °C
From formula,
L_T = L₀(1 + αT)
For aluminium,
(L₀)_al = (L₀)_al(1 + α_alT) ……………. (1)
For iron,
(L_T)_i = (L₀)_i (1 + α_iT) ………….. (2)
Subtracting equation (2) by (1),
(L_T)_i – (L_T)_al = [(L₀)_i + (L₀)_i α_iT] – [(L₀)_al + (L₀)_alα_alT]
= (L₀)_i – (L₀)_al + [(L₀)_i α_i – (L₀)_al α_al]T
∴ 1.5 = 1.5 + [(L₀)_i α_i – (L₀)_al α_al)]T
⇒ [(L₀)_iα_i – (L₀)_alα_al] T = 0

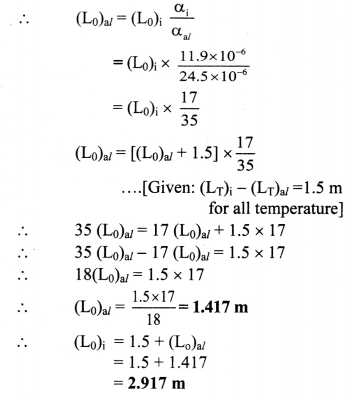

∴ (L₀)_alα_al = (L₀)_iα_i

Length of aluminium rod at 0 °C is 1.417 m and that of iron rod is 2.917 m.

Question 14.

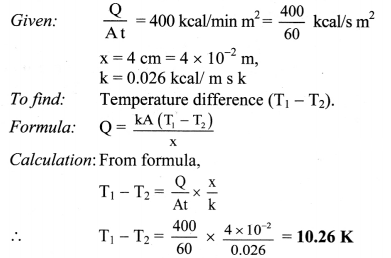

Find the temperature difference between two sides of a steel plate 4 cm thick, when heat is transmitted through the plate at the rate of 400 k cal per minute per square metre at steady state. Thermal conductivity of steel is 0.026 kcal/m s K.
Solution:

Temperature difference between two sides is 10.26 K.
[Note: Above answer is expressed in K (‘kelvin considering that thermal conductivity is expressed in units of kcal / ms K, and not as kcal / m s °C. As 1 °C equivalent to 1 K. conceptually temperature difference of 10.26 K will correspond to 10.26 t]

Question 15.
A metal sphere cools from 80 °C to 60 °C in 6 min. How much time with it take to cool from 60 °C to 40 °C if the room temperature is 30°C?
Solution:

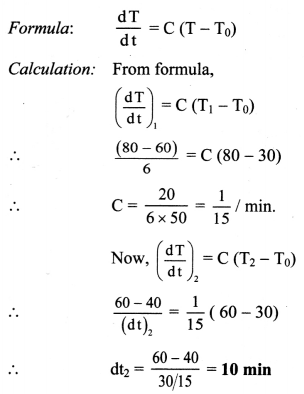

Given: T₁ = 80 °C, T₂ = 60 °C, T₃ = 40 °C, T₀ = 30 °C, (dt)₁ = 6 min.
To find: Time taken in cooling (dt)₂

Time taken in cooling is 10 min.

Can you tell? (Textbook Page No. 125)

Question 1.
i) Why the metal wires for electrical transmission lines sag?
ii) Why a railway track is not a continuous piece but is made up of segments separated by gaps?
iii) How a steel wheel is mounted on an axle to fit exactly?
Answer:

1. In hot weather, metal wires get heated due to increased temperature of surrounding. As a result, they expand increasing the slack between transmission line structure, causing them to sag.
2. Railway tracks are made up of metals which expand upon heating. If no gap is kept between tracks, in hot weather, expansion of metal tracks may exert thermal stress on track. This may lead to bending of tracks which would be dangerous. Hence, railway track is not a continuous piece but is made up of segments separated by gaps.
3. The steel wheel is heated to expand. This expanded wheel can easily fit over axle. The wheel is then cooled quickly. Upon cooling, wheel contracts and fits tightly upon the axle.

Intext question. (Textbook Page No 124)

Question 1.
Can you now tell why the balloon bursts sometimes when you try to fill air in it?
Answer:

1. When balloon is blown, air that is blown inside makes the balloon expand.
2. A given size of balloon can expand upto certain limit.
3. Once that limit is reached and air is still blown inside the balloon, balloon cannot expand further.
4. As a result, air causes additional pressure on inner surface of balloon.
5. Since, pressure inside balloon is now greater than pressure outside balloon, balloon bursts equalizing the two pressures.

Can you tell? (Textbook Page No. 125)

Question 1.
Why lakes freeze first at the surface?
Answer:

1. In cold climate, temperature of water in ponds and lakes starts falling.
2. On getting colder, water contracts. As a result, density of water increases and it goes down. To replace it, warmer water from below rises up. This process continues till temperature of water at the bottom of pond becomes 4 °C.
3. Water, due to its anomalous behaviour possesses maximum density at 4 °C.
4. If the temperature lowers further, ice is formed at the surface of pond with water below it.
5. Ice being poor conductor of heat blocks the further heat exchange between atmosphere and water in the pond and maintains water below surface in liquid state.

Activity (Textbook Page No. 129)

Question 1.
To understand the process of change of state:
Take some cubes of ice in a beaker. Note the temperature of ice (0 °C). Start heating it slowly on a constant heat source. Note the temperature after every minute. Continuously stir the mixture of water and ice. Observe the change in temperature. Continue heating even after the whole of ice gets converted into water. Observe the change in temperature as before till vapours start coming out. Plot the graph of temperature (along Y-axis) versus time (along X-axis). Obtain a graph of temperature versus time.
Answer:
[Students are expected to attempt the activity on their own.]

Can you tell? (Textbook Page No. 130)

Question 1.

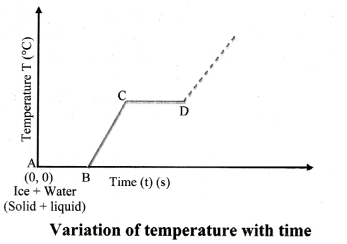

What is observed after point D in graph? Can steam be hotter than 100 °C?
Answer:
Beyond point D, thermometer again shows rise in temperature. This means, steam can be hotter than 100 °C and is termed as superheated steam.

Question 2.
Why steam at 100 °C causes more harm to our skin than water at 100 °C?
Answer:

1. Though steam and boiling water have same temperature, the heat contained in steam is more than that in boiling water.
2. Steam is formed when boiling water absorbs specific latent heat of vaporisation i.e.. 22.6 × 10⁵ J/kg.
3. As a result, when steam comes in contact with the skin of a person, it gives off additional 22.6 × 10⁵ joule per kilogram causing severe (more serious) burns.
   Hence, burns caused from steam are more serious than those caused from boiling water at same temperature.

Activity (Textbook Page No. 130)

Activity to understand the dependence of boiling point on pressure:
Take a round bottom flask, more than half filled with water. Keep it over a burner and fix a thermometer and steam outlet through the cork of the flask as shown in figure. As water in the flask gets heated, note that first the air, which was dissolved in the water comes out as small bubbles. Later bubbles of steam form at the bottom but as they rise to the cooler water near the top, they condense and disappear. Finally, as the temperature of the entire mass of the water reaches 100 oc, bubbles of steam reach the surface and boiling is said to occur. The steam in the flask may not be visible hut as it comes out of the flask, It condenses as tiny droplets of water giving a foggy appearance.

If now the steam outlet is closed for a few seconds to increase the pressure in the flask, you will notice that boiling stops. More heat would be required to raise the temperature (depending on the increase in pressure) before boiling starts again. Thus, boiling point increases with increase in pressure. Let us now remove the burner. Allow water to cool to about 80°C. Remove the thermometers and steam outlet. Close the flask with a air tight cork. Keep the flask turned upside down on a stand. Pour icecold water on the flask. Water vapours in the flask condense reducing the pressure on the water surface inside the flask. Water begins to boil again, now at a lower temperature. Thus boiling point decreases with decrease in pressure and increases with increase in pressure.
Answer:
[Students are expected to attempt the activity an their own.]

Can you tell? (Textbook Page No. 131)

Question 1.
i) Why is cooking difficult at high altitude?
ii) Why is cooking faster in pressure cooker?
Answer:

• At high altitude density of air is low which causes reduction in atmospheric pressure.
• As pressure is less, boiling point of water lowers.
• Water, at high altitude, starts boiling below 100 OC.
• As food is cooked mostly through the water boiling, cooking of food becomes difficult.

Internet my friend (Textbook Page No. 139)

i) https ://hyperphysics. phy-astr.gsu.edul/base/hframe.html
ii) https://youtu.be/7ZKHc5J6R5Q
iii) https://physics. info/expansion
Answer:
[Students are expected to visit the above mentioned webs it es and collect more information about the thermal properties of matter.]

Download PDF

Maharashtra Board Solutions Class 11-Physics: Chapter 7- Thermal Properties of Matter

Download PDF: Maharashtra Board Solutions Class 11-Physics: Chapter 7- Thermal Properties of Matter PDF

Chapterwise Maharashtra Board Solutions Class 11 Physics :

• Chapter 1- Units and Measurements
• Chapter 2- Mathematical Methods
• Chapter 3- Motion in a Plane
• Chapter 4- Laws of Motion
• Chapter 5- Gravitation
• Chapter 6- Mechanical Properties of Solids
• Chapter 7- Thermal Properties of Matter
• Chapter 8- Sound
• Chapter 9- Optics
• Chapter 10- Electrostatics
• Chapter 11- Electric Current Through Conductors
• Chapter 12- Magnetism
• Chapter 13- Electromagnetic Waves and Communication System
• Chapter 14- Semiconductors

FAQs

About Maharashtra State Board (MSBSHSE)

The Maharashtra State Board of Secondary and Higher Secondary Education or MSBSHSE (Marathi: महाराष्ट्र राज्य माध्यमिक आणि उच्च माध्यमिक शिक्षण मंडळ), is an autonomous and statutory body established in 1965. The board was amended in the year 1977 under the provisions of the Maharashtra Act No. 41 of 1965.

The Maharashtra State Board of Secondary & Higher Secondary Education (MSBSHSE), Pune is an independent body of the Maharashtra Government. There are more than 1.4 million students that appear in the examination every year. The Maha State Board conducts the board examination twice a year. This board conducts the examination for SSC and HSC.

The Maharashtra government established the Maharashtra State Bureau of Textbook Production and Curriculum Research, also commonly referred to as Ebalbharati, in 1967 to take up the responsibility of providing quality textbooks to students from all classes studying under the Maharashtra State Board. MSBHSE prepares and updates the curriculum to provide holistic development for students. It is designed to tackle the difficulty in understanding the concepts with simple language with simple illustrations. Every year around 10 lakh students are enrolled in schools that are affiliated with the Maharashtra State Board.

Read More

• NCERT Solutions for 11th Class Physics: Chapter 11-Thermal Properties of Matter
• Maharashtra Board Solutions Class 12 Physics: Chapter 4- Thermodynamics
• HC Verma Solutions for Class 12 Physics Chapter 23 – Heat and Temperature
• HC Verma Solutions for Class 12 Physics Chapter 28 – Heat Transfer
• HC Verma Solutions for Class 12 Physics Chapter 25 – Calorimetry

IndCareer Board Book Solutions App

IndCareer Board Book App provides complete study materials for students from classes 1 to 12 of Board. The App contains complete solutions of NCERT books, notes, and other important materials for students. Download the IndCareer Board Book Solutions now.
