Selina Class 9 ICSE Solutions Mathematics : Chapter 27- Graphical Solution (Solution of Simultaneous Linear Equations, Graphically)

Class 9: Maths Chapter 27 solutions. Complete Class 9 Maths Chapter 27 Notes.

Selina Class 9 ICSE Solutions Mathematics : Chapter 27- Graphical Solution (Solution of Simultaneous Linear Equations, Graphically)

Selina 9th Maths Chapter 27, Class 9 Maths Chapter 27 solutions

Exercise 27(A)

Solution 1:
(i)

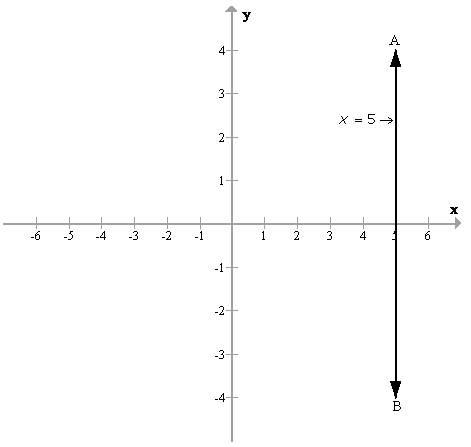

The graph x= 5 in the following figure is a straight line AB which is parallel to y axis at a distance of 5 units from it.

(ii)
x+5=0
x = -5

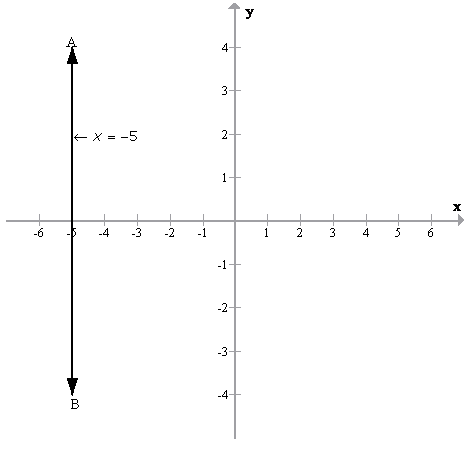

The graph x= -5 in the following figure is a straight line AB which is parallel to y axis at a distance of 5 units from it in the negative x direction.

(iii)

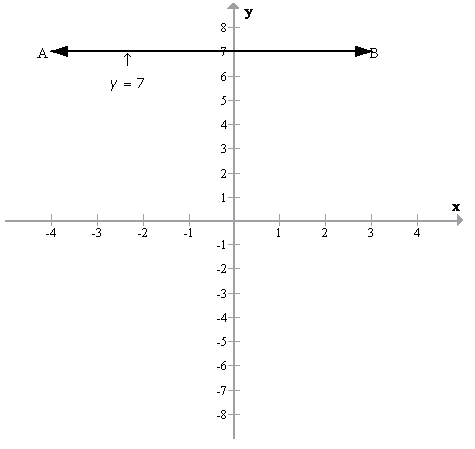

The graph y = 7 in the following figure is a straight line AB which is parallel to x axis at a distance of 7 units from it.

(iv)
y + 7 = 0
y = -7

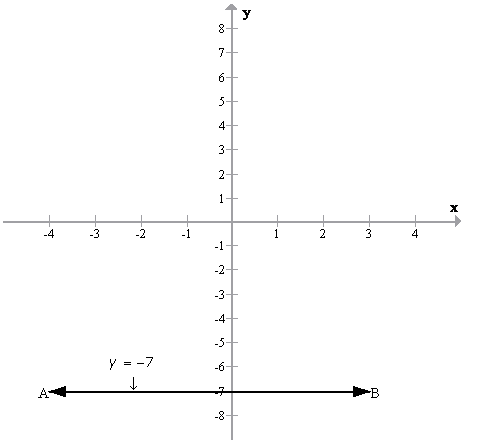

The graph y = -7 in the following figure is a straight line AB which is parallel to x axis at a distance of 7 units from it in the negative y direction.

Solution 2:

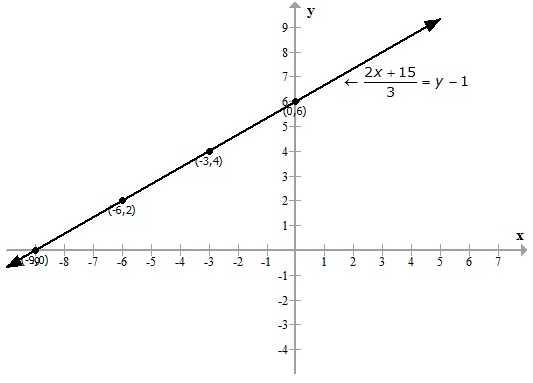

From the figure it is clear that, the graph meets the coordinate axes at (-9, 0) and (0, 6)

Solution 3:

Solution 4:

Solution 5:

Solution 6:

Solution 7:

Solution 8:

Solution 9:

Solution 10:

Exercise 27(B)

Solution 1:

Solution 2:

Solution 3:

Solution 4:

Solution 5:

Solution 6:

Solution 7:

Solution 8:

Solution 9:

Solution 10:

Solution 11:

Solution 12:

Solution 13:

Solution 14:
