In solving problems, use m_e = 0.00055 u = 0.5110 MeV/c², m_p = 1.00728 u, m_n = 1.00866u, m_H = 1.007825 u, u = 931.5 MeV, e = 1.602 × 10^-19 C, h = 6.626 × 10^-34 Js, ε₀ = 8.854 × 10^-12 SI units and me = 9.109 × 10^-31 kg.

1. Choose the correct option.

i) In which of the following systems will the radius of the first orbit of the electron be the smallest?
(A) hydrogen
(B) singly ionized helium
(C) deuteron
(D) tritium
Answer:
(D) tritium

ii) The radius of the 4th orbit of the electron will be smaller than its 8th orbit by a factor of
(A) 2
(B) 4
(C) 8
(D) 16
Answer:
(B) 4

iii) In the spectrum of hydrogen atom which transition will yield longest wavelength?
(A) n = 2 to n = 1
(B) n = 5 to n = 4
(C) n = 7 to n = 6
(D) n = 8 to n = 7
Answer:
(D) n = 8 to n = 7

iv) Which of the following properties of a nucleus does not depend on its mass number?
(A) radius
(B) mass
(C) volume
(D) density
Answer:
(D) density

v) If the number of nuclei in a radioactive sample at a given time is N, what will be the number at the end of two half-lives?
(A) N2
(B) N4
(C) 3N4
(D) N8
Answer:
(B) N4

2. Answer in brief.

i) State the postulates of Bohr’s atomic model.
Answer:
The postulates of Bohr’s atomic model (for the hydrogen atom) :

1. The electron revolves with a constant speed in acircular orbit around the nucleus. The necessary centripetal force is the Coulomb force of attraction of the positive nuclear charge on the negatively charged electron.
2. The electron can revolve without radiating energy only in certain orbits, called allowed or stable orbits, in which the angular momentum of the electron is equal to an integral multiple of h/2π, where h is Planck’s constant.
3. Energy is radiated by the electron only when it jumps from one of its orbits to another orbit having lower energy. The energy of the quantum of elec-tromagnetic radiation, i.e., the photon, emitted is equal to the energy difference of the two states.

ii) State the difficulties faced by Rutherford’s atomic model.
Answer:
(1) According to Rutherford, the electrons revolve in circular orbits around the atomic nucleus. The circular motion is an accelerated motion. According to the classical electromagnetic theory, an accelerated charge continuously radiates energy. Therefore, an electron during its orbital motion, should go on radiating energy. Due to the loss of energy, the radius of its orbit should go on decreasing. Therefore, the electron should move along a spiral path and finally fall into the nucleus in a very short time, of the order of 10^-16 s in the case of a hydrogen atom. Thus, the atom should be unstable. We exist because atoms are stable.

(2) If the electron moves along such a spiral path, the radius of its orbit would continuously decrease. As a result, the speed and frequency of revolution of the electron would go on increasing. The electron, therefore, would emit radiation of continuously changing frequency, and hence give rise to a con-tinuous spectrum. However, atomic spectrum is a line spectrum.

iii) What are alpha, beta and gamma decays?
Answer:
(a) A radioactive transformation in which an α-particle is emitted is called α-decay.
In an α-decay, the atomic number of the nucleus decreases by 2 and the mass number decreases by 4.
Example : 23892U→23490Th+42α
Q = [m_u – m_Th – m_α]c²

(b) A radioactive transformation in which a β-particle is emitted is called β-decay.
In a β^–-decay, the atomic number of the nucleus increases by 1 and the mass number remains unchanged.
Example : 23490Th→23491 Pa+0−1e+v¯e
where v¯e is the neutrino emitted to conserve the momentum, energy and spin.
Q = [m_u – m_Th – m_α]c²
In a β⁺-decay, the atomic number of the nucleus decreases by 1 and the mass number remains unchanged.
Example : 3015P→3014Si+0+1e+ve
where v_e is the neutrino emitted to conserve the momentum, energy and spin.
Q = [m_P – m_Si – m_e]c²
[Note : The term fi particle refers to the electron (or positron) emitted by a nucleus.]

A given nucleus does not emit α and β-particles simultaneously. However, on emission of α or β-particles, most nuclei are left in an excited state. A nucleus in an excited state emits a γ-ray photon in a transition to the lower energy state. Hence, α and β-particle emissions are often accompanied by γ-rays.

iv) Define excitation energy, binding energy and ionization energy of an electron in an atom.
Answer:
(1) Excitation energy of an electron in an atom : The energy required to transfer an electron from the ground state to an excited state (a state of higher energy) is called the excitation energy of the electron in that state.

(2) Binding energy of an electron in an atom is defined as the minimum energy that should be provided to an orbital electron to remove it from the atom such that its total energy is zero.

(3) Ionization energy of an electron in an atom is defined as the minimum energy required to remove the least strongly bound electron from a neutral atom such that its total energy is zero.

v) Show that the frequency of the first line in Lyman series is equal to the difference between the limiting frequencies of Lyman and Balmer series.
Answer:
For the first line in the Lyman series,
1λL1=R(112−122)=R(1−14)=3R4
∴ v_L1 = cλL1=3Rc4, where v denotes the frequency,
c the speed of light in free space and R the Rydberg constant.

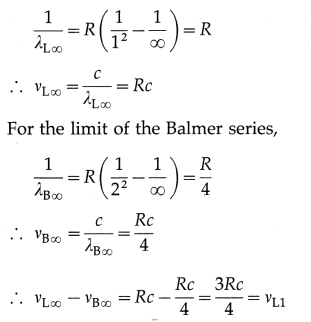

For the limit of the Lyman series,

Hence, the result.

Question 3.
State the postulates of Bohr’s atomic model and derive the expression for the energy of an electron in the atom.
Answer:
The postulates of Bohr’s atomic model (for the hydrogen atom) :
(1) The electron revolves with a constant speed in acircular orbit around the nucleus. The necessary centripetal force is the Coulomb force of attraction of the positive nuclear charge on the negatively charged electron.
(2) The electron can revolve without radiating energy only in certain orbits, called allowed or stable orbits, in which the angular momentum of the electron is equal to an integral multiple of h/2π, where h is Planck’s constant.
(3) Energy is radiated by the electron only when it jumps from one of its orbits to another orbit having lower energy. The energy of the quantum of elec-tromagnetic radiation, i.e., the photon, emitted is equal to the energy difference of the two states.

Consider the electron revolving in the nth orbit around the nucleus of an atom with the atomic number Z. Let m and e be the mass and the charge of the electron, r the radius of the orbit and v the linear speed of the electron.

According to Bohr’s first postulate, centripetal force on the electron = electrostatic force of attraction exerted on the electron by the nucleus
∴ mv2r=14πε0⋅Ze2r2 ……………. (1)
where ε₀ is the permittivity of free space.
∴ Kinetic energy (KE) of the electron
= 12mv2=Ze28πε0r ………….. (2)
The electric potential due to the nucleus of charge +Ze at a point at a distance r from it is
V = 14πε0⋅Zer
∴ Potential energy (PE) of the electron
= charge on the electron × electric potential
= – e × 14πε0Zer=−Ze24πε0r …………….. (3)
Hence, the total energy of the electron in the nth orbit is
E = KE + PE = −Ze24πε0r+Ze28πε0r
∴ E = −Ze28πε0r ………….. (4)
This shows that the total energy of the electron in the nth orbit of the atom is inversely proportional to the radius of the orbit as Z, ε₀ and e are constants. The radius of the nth orbit of the electron is
r = ε0h2n2πmZe2 …………….. (5)
where h is Planck’s constant.
From Eqs. (4) and (5), we get,
E_n = −Ze28πε0(πmZe2ε0h2n2)=−mZ2e48ε20h2n2 ……………… (6)
This gives the expression for the energy of the electron in the nth Bohr orbit. The minus sign in the expression shows that the electron is bound to the nucleus by the electrostatic force of attraction.
As m, Z, e, ε₀ and h are constant, we get
E_n ∝ 1n2
i.e., the energy of the electron in a stationary energy state is discrete and is inversely proportional to the square of the principal quantum number.
[ Note : Energy levels are most conveniently expressed in electronvolt. Hence, substituting the values of m, e, £0 and h, and dividing by the conversion factor 1.6 × 10^-19 J/eV,
E_n ≅ −13.6Z2n2 (in eV)
For hydrogen, Z = 1
∴ E_n ≅ −13.6n2 (in eV).

Question 4.
Starting from the formula for energy of an electron in the n^th orbit of hydrogen atom, derive the formula for the wavelengths of Lyman and Balmer series spectral lines and determine the shortest wavelengths of lines in both these series.
Answer:
According to Bohr’s third postulate for the model of the hydrogen atom, an atom radiates energy only when an electron jumps from a higher energy state to a lower energy state and the energy of the
quantum of electromagnetic radiation emitted in this process is equal to the energy difference between the two states of the electron. This emission of radiation gives rise to a spectral line.

The energy of the electron in a hydrogen atom,
when it is in an orbit with the principal quantum
number n, is
E_n = −me48ε20h2n2
where m = mass of electron, e = electronic charge, h = Planck’s constant and = permittivity of free space.

Let E_m be the energy of the electron in a hydrogen atom when it is in an orbit with the principal quantum number m and E, its energy in an orbit with the principal quantum number n, n < m. Then
E_m = −me48ε20h2m2 and E_n = −me48ε20h2m2
Therefore, the energy radiated when the electron jumps from the higher energy state to the lower energy state is
E_m – E_n = −me48ε20h2m2−(−me48ε20h2n2)
= me48ε20h2(1n2−1m2)
This energy is emitted in the form of a quantum of radiation (photon) with energy hv, where V is the frequency of the radiation.
∴ E_m – E_n = hv
∴ v = Em−Enh=me48ε20h3(1n2−1m2)
The wavelength of the radiation is λ = cv′
where c is the speed of radiation in free space.
The wave number, v¯=1λ=vc
v¯=1λ=me48ε20h3c(1n2−1m2)=R(1n2−1m2)
where R(=me48ε20h3c) is a constant called the Ryd berg constant.

This expression gives the wave number of the radiation emitted and hence that of a line in hydrogen spectrum.

For the Lyman series, n = 1,m = 2, 3, 4, ………… ∞
∴ 1λL=R(112−1m2) and for the shortest wavelength line m this series, 1λLs=R(112) as m = ∞.
For the Balmer series, n = 2, m = 3, 4, 5, … ∞.
∴ 1λB=R(14−1m2) and for the shortest wavelength line in this series, 1λBs=R(14) as m = ∞
[Note: Johannes Rydberg (1854—1919), Swedish spectroscopist, studied atomic emission spectra and introduced the idea of wave number. The empirical formula v¯=1λ=R(1n2−1m2) where m and n are simple integers, is due to Rydberg. When we consider the finite mass of the nucleus, we find that R varies slightly from element to element.]

Question 5.

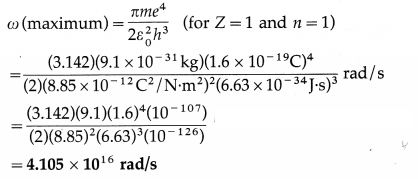

Determine the maximum angular speed of an electron moving in a stable orbit around the nucleus of hydrogen atom.
Answer:
The radius of the ,ith Bohr orbit is
r = ε0h2n2πmZe2 ………….. (1)
and the linear speed of an electron in this orbit is
ν = Ze22ε0nh …………… (2)
where ε ₀ permittivity of free space, h ≡ Planck’s constant, n ≡ principal quantum number, m ≡ electron mass, e electronic charge and Z ≡ atomic number of the atom.
Since angular speed ω = vr, then from Eqs. (1) and (2), we get,
ω = vr=Ze22ε0nh⋅πmZe2ε0h2n2=πmZ2e42ε20h3n3 ………………. (3)
which gives the required expression for the angular speed of an electron in the nth Bohr orbit.
From Eq. (3), the frequency of revolution of the electron,
f = ω2π=12π×πmZ2e42ε20h3n3=mZ2e44ε20h3n3 …………….. (4)
as required.
[Note : From Eq. (4), the period of revolution of the electron, T = 1f=4ε20h3n3mZe4. Hence, f ∝ 1n3 and T ∝ n³].

Obtain the formula for ω and continue as follows :

This is required quantity.

Question 6.
Determine the series limit of Balmer, Paschen and Bracket series, given the limit for Lyman series is 912 Å.
Answer:

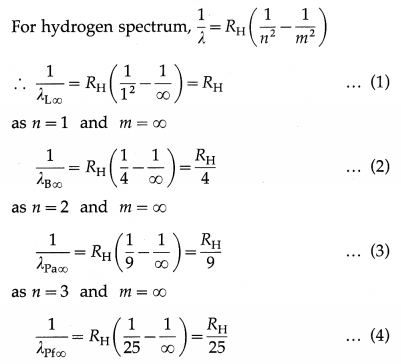

Data : λ_L∞ = 912 Å

as n = 5 and m = ∞
From Eqs. (1) and (2), we get,
λPa∞λL∞=RHRH/9 = 9
∴ λ_Pa∞ = 9λ_L∞ = (9) (912) = 8202 Å
λPf∞λL∞=RHRH/25 = 25
∴ λ_Pf∞ = 25λ_L∞ = (25) (912) = 22800 Å
This is the series limit of the pfund series.

Question 7.

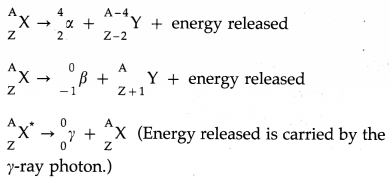

Describe alpha, beta and gamma decays and write down the formulae for the energies generated in each of these decays.
Answer:
(a) A radioactive transformation in which an α-particle is emitted is called α-decay.
In an α-decay, the atomic number of the nucleus decreases by 2 and the mass number decreases by 4.
Example : 23892U→23490Th+42α
Q = [m_u – m_Th – m_α]c²

(b) A radioactive transformation in which a β-particle is emitted is called β-decay.
In a β^–-decay, the atomic number of the nucleus increases by 1 and the mass number remains unchanged.
Example : 23490Th→23491 Pa+0−1e+v¯e
where v¯e is the neutrino emitted to conserve the momentum, energy and spin.
Q = [m_u – m_Th – m_α]c²
In a β⁺-decay, the atomic number of the nucleus decreases by 1 and the mass number remains unchanged.
Example : 3015P→3014Si+0+1e+ve
where v_e is the neutrino emitted to conserve the momentum, energy and spin.
Q = [m_P – m_Si – m_e]c²
[Note : The term fi particle refers to the electron (or positron) emitted by a nucleus.]

A given nucleus does not emit α and β-particles simultaneously. However, on emission of α or β-particles, most nuclei are left in an excited state. A nucleus in an excited state emits a γ-ray photon in a transition to the lower energy state. Hence, α and β-particle emissions are often accompanied by γ-rays.

Question 8.
Explain what are nuclear fission and fusion giving an example of each. Write down the formulae for energy generated in each of these processes.
Answer:
Nuclear fission is a nuclear reaction in which a heavy nucleus of an atom, such as that of uranium, splits into two or more fragments of comparable size, either spontaneously or as a result of bombardment of a neutron on the nucleus (induced fission). It is followed by emission of two or three neutrons.
The mass of the original nucleus is more than the sum of the masses of the fragments. This mass difference is released as energy, which can be enormous as in the fission of ²³⁵U.
Nuclear fission was discovered by Lise Meitner, Otto Frisch, Otto Hahn and Fritz Strassmann in 1938.

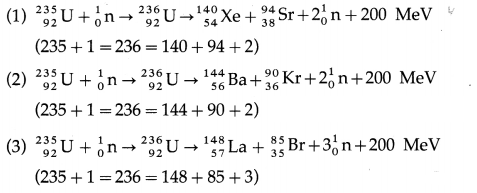

The products of the fission of ²³⁵U by thermal neutrons are not unique. A variety of fission fragments are produced with mass number A ranging from about 72 to about 138, subject to the conservation of mass-energy, momentum, number of protons (Z) and number of neutrons (N). A few typical fission equations are

A type of nuclear reaction in which lighter atomic nuclei (of low atomic number) fuse to form a heavier nucleus (of higher atomic number) with the’ release of enormous amount of energy is called nuclear fusion.

Very high temperatures, of about 107 K to 108 K, are required to carry out nuclear fusion. Hence, such a reaction is also called a thermonuclear reaction.

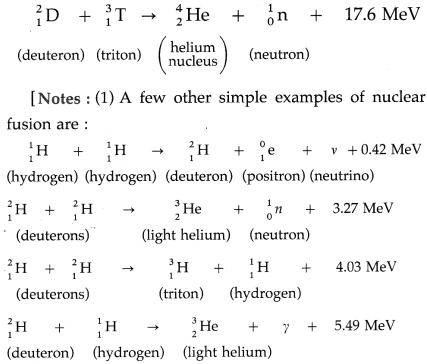

Example : The D-T reaction, being used in experimental fusion reactors, fuses a deuteron and a triton nuclei at temperatures of about 10⁸ K.

(2) The value of the energy released in the fusion of two deuteron nuclei and the temperature at which the reaction occurs mentioned in the textbook are probably misprints.]

Question 9.
Describe the principles of a nuclear reactor. What is the difference between a nuclear reactor and a nuclear bomb?
Answer:
In a nuclear reactor fuel rods are used to provide a suitable fissionable material such as 23692U. Control rods are used to start or stop the reactor. Moderators are used to slow down the fast neutrons ejected in a nuclear fission to the appropriate lower speeds. Material used as a coolant removes the energy released in the nuclear reaction by converting it into thermal energy for production of electricity.

In a nuclear reactor, a nuclear fission chain reaction is used in a controlled manner, while in a nuclear bomb, the nuclear fission chain reaction is not controlled, releasing tremendous energy in a very short time interval.
[Note : The first nuclear bomb (atomic bomb) was dropped on Hiroshima in Japan on 06 August 1945. The second bomb was dropped on Nagasaki in Japan on 9 August 1945.]

Question 10.
Calculate the binding energy of an alpha particle given its mass to be 4.00151 u.
Answer:
Data : M = 4.00151 u, = 1.00728 u,
m_n = 1.00866 u, 1 u = 931.5 MeV/c²
The binding energy of an alpha particle
(Zm_p + N_n -M)c²
=(2m_p + 2m_n -M)c²
= [(2)(1.00728u) + 2(1.00866 u) – 4.00151 u]c²
= (2.01456 + 2.01732 – 4.00151)(931.5) MeV
= 28.289655 MeV
= 28.289655 × 10⁶ eV × 1.602 × 10^-19 J
= 4.532002731 × 10^-12 J

Question 11.

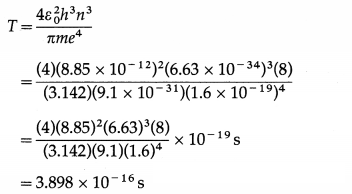

An electron in hydrogen atom stays in its second orbit for 10^-8 s. How many revolutions will it make around the nucleus in that time?
Answer:
Data : z = 1, m = 9.1 × 10^-31 kg, e = 1.6 × 10^-19 C, ε₀ = 8.85 × 10^-12 C² / N.m², h = 6.63 × 10 ^-34 J.s, n = 2, t = 10^-8 s
The periodic time of the electron in a hydrogen atom,

Let N be the number of revolutions made by the electron in time t. Then, t = NT.
∴ N = tT=10−83.898×10−16 = 2.565 × ⁷

Question 12.
Determine the binding energy per nucleon of the americium isotope 24495Am , given the mass of 24495Am to be 244.06428 u.
Answer:
Data : Z = 95, N = 244  – 95 = 149,
m_p = 1.00728 u, m_n = 1.00866 u,
M = 244.06428 u, 1 u = 931.5 MeV/c²

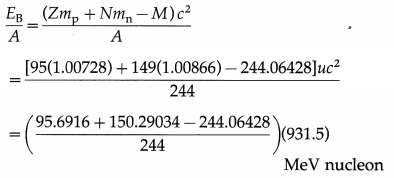

The binding energy per nucleon,

= 7.3209 MeV/nucleon

Question 13.
Calculate the energy released in the nuclear reaction 73Li + p → 2α given mass of 73Li atom and of helium atom to be 7.016 u and 4.0026 u respectively.
Answer:
Data: M₁ (73Li Li atom)= 7.016 u, M₂ (He atom)
= 4.0026 u, m_p = 1.00728 u, 1 u = 931.5 MeV/c²
∆M = M₁ + m_p – 2M₂
= [7.016 + 1.00728 – 2(4.0026)]u
= 0.01808 u = (0.01808)(931.5) MeV/c²
= 16.84152 MeV/c²
Therefore, the energy released in the nuclear reaction = (∆M) c² = 16.84152 MeV

Question 14.
Complete the following equations describing nuclear decays.

Answer:
(a) 22688Ra→42α+22286Em
Em (Emanation) ≡ Rn (Radon)
Here, α particle is emitted and radon is formed.

(b) 198O→e−+199 F
Here, e^– ≡ 0−1β is emitted and fluorine is formed.

(c) 22890Th→42α+22488Ra
Here, α particle is emitted and radium is formed.

(d) 127 N→126C+01β
01β is e⁺ (positron)
Here, β⁺ is emItted and carbon is formed.

Question 15.

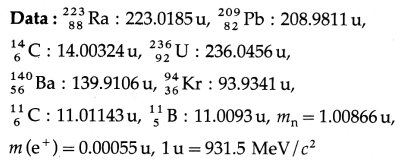

Calculate the energy released in the following reactions, given the masses to be 22388Ra : 223.0185 u, 20982 Pb : 208.9811, 146C : 14.00324, 23692U : 236.0456, 14056Ba : 139.9106, 9436Kr : 93.9341, 116C : 11.01143, 115 B : 11.0093. Ignore neutrino energy.

Answer:

(a) 22388Ra→20982 Pb+146C
The energy released in this reaction = (∆M) c²
= [223.0185 – (208.9811 + 14.00324)j(931 .5) MeV
= 31.820004 MeV

(b) 23692U→14056Ba+9436Kr+2n
The energy released in this reaction =
(∆M) c² = [236.0456 – (139.9106 + 93.9341 + (2)(1 .00866)1(93 1 .5)MeV
= 171.00477 MeV

(c) 116⋅C→115 B+e+ + neutrino
The energy released in this reaction = (∆M) c²
= [11.01143 – (11.0093 + O.00055)](931.5) MeV
= 1.47177 MeV

Question 16.

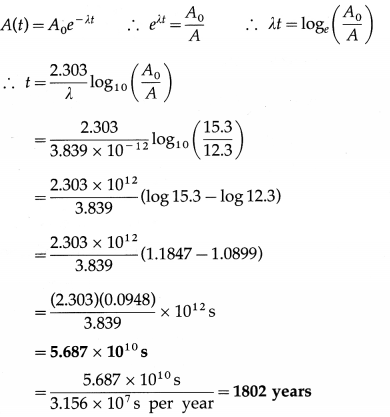

Sample of carbon obtained from any living organism has a decay rate of 15.3 decays per gram per minute. A sample of carbon obtained from very old charcoal shows a disintegration rate of 12.3 disintegrations per gram per minute. Determine the age of the old sample given the decay constant of carbon to be 3.839 × 10^-12 per second.
Answer:
Data: 15.3 decays per gram per minute (living organism), 12.3 disintegrations per gram per minute (very old charcoal). Hence, we have,
A(t)A0=12.315.3, λ = 3.839 × 10^-12 per second

Question 17.
The half-life of 9038Sr is 28 years. Determine the disintegration rate of its 5 mg sample.
Answer:
Data: T_1/2 = 28 years = 28 × 3.156 × 10⁷ s
=8.837 × 10⁸s, M = 5 mg =5 × 10^-3g
90 grams of 9038Sr contain 6.02 × 10²³ atoms
Hence, here, N = (6.02×1023)(5×10−3)90
= 3.344 × 10¹⁹ atoms
∴ The disintegration rate = Nλ = N0.693T1/2
= (3.344×1019)(0.693)8.837×108
= 2.622 × 10¹⁰ disintegrations per second

Question 18.
What is the amount of 6027Co necessary to provide a radioactive source of strength 10.0 mCi, its half-life being 5.3 years?
Answer:
Data : Activity = 10.0 mCi = 10.0 × 10^-3 Ci
= (10.0 × 10^-3)(3.7 × 10¹⁰) dis/s = 3.7 × 10⁸ dis/s
T_1/2 = 5.3 years = (5.3)(3.156 × 10⁷) s
= 1.673 × 10⁸ s
Decay constant, λ = 0.693T1/2=0.6931.673×108 s−1
=4.142 × 10^-9 s^-1
Activity = Nλ
∴ N =  activity λ=3.7×1084.142×10−9 atoms
= 8.933 × 10¹⁶ atoms
=60 grams of 6027Co contain 6.02 × 10²³ atoms
Mass of 8.933 × 10¹⁶ atoms of 6027Co
= 8.933×10166.02×1023×60 g
= 8.903 × 10^-6 g = 8.903 µg
This is the required amount.

Question 19.
Disintegration rate of a sample is 10¹⁰ per hour at 20 hrs from the start. It reduces to 6.3 × 10⁹ per hour after 30 hours. Calculate its half life and the initial number of radioactive atoms in the sample.
Answer:
Data : A (t₁) = 10¹⁰ per hour, where t₁ = 20 h,
A (t₂) = 6.3 × 10⁹ per hour, where t₂ = 30 h
A(t) = A₀e^-λt ∴ A(t₁) = A₀e^-λt₁ and A(t₂) = A_oe^-λt₂

∴ 1.587 e^10λ ∴ 10λ =2.3031og₁₀(1.587)
∴ λ = (0.2303)(0.2007) = 0.04622 per hour
The half life of the material, T_1/2 = 0.693λ=0.6930.04622
= 14.99 hours
Now, A₀ = A (t₁)e^λt₁ = 10¹⁰e^{(0.04622)(20)}
= 10¹⁰ e^0.9244
Let x = e^0.9244 ∴ 2.3031og₁₀x = 0.9244
∴ 1og₁₀x = 0.92442.303 = 0.4014
∴ x = antilog 0.4014 = 2.52
∴ A₀ = 2.52 × 10¹⁰ per hour
Now A₀ = N₀λ ∴ N₀ = A0λ=2.52×10100.04622
= 5.452 × 10¹¹
This is the initial number of radioactive atoms in the sample.

Question 20.
The isotope ⁵⁷Co decays by electron capture to ⁵⁷Fe with a half-life of 272 d. The ⁵⁷Fe nucleus is produced in an excited state, and it almost instantaneously emits gamma rays.
(a) Find the mean lifetime and decay constant for ⁵⁷Co.
(b) If the activity of a radiation source ⁵⁷Co is 2.0 µCi now, how many ⁵⁷Co nuclei does the source contain?
(c) What will be the activity after one year?
Answer:
Data: T_1/2 = 272d = 272 × 24 × 60 × 60s = 2.35 × 10⁷ s,
A₀ = 2.0uCi = 2.0 × 10^-6 × 3.7 × 10¹⁰
= 7.4 × 10⁴ dis/s
t = 1 year = 3.156 × 10⁷ s
(a) T_1/2 = 0.693λ = 0.693 τ ∴ The mean lifetime for
⁵⁷Co = τ = T1/20.693=2.35×1070.693 = 3391 × 10⁷ s
The decay constant for ⁵⁷Co = λ = 1τ
= 13.391×107 s
= 2949 × 10^-8 s^-1

(b)A₀ = N₀A ∴ N₀ = A0λ = A₀τ
= (7.4 × 10⁴)(3.391 × 10⁷)
= 2.509 × 10¹² nuclei
This is the required number.

(c) A(t) = A₀e^-λt = 2e^{-(2.949 × 10-8)(3.156 × 107)}
= 2e^-0.9307 = 2 / e^0.9307
Let x = e^0.9307 ∴ Iog_ex = 0.9307
∴ 2.303log₁₀x = 0.9307
∴ log₁₀x = 0.93072.303 = 0.4041
∴ x = antilog 0.4041 = 2.536
∴ A (t) = 22.536 μCi = 0.7886 μCi

Question 21.

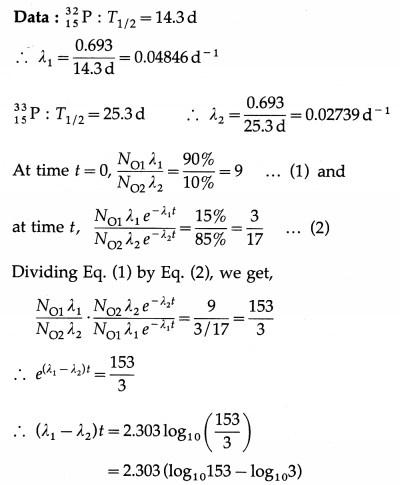

A source contains two species of phosphorous nuclei, 3215P (T_1/2 = 14.3 d) and 3215P (T_1/2 = 25.3 d). At time t = 0, 90% of the decays are from 3215P . How much time has to elapse for only 15% of the decays to be from 3215P ?
Answer:

∴ (0.04846 – 0.02739) t = 2.303 (2.1847 – 0.4771)
∴ t = (2.303)(1.7076)0.02107 = 186.6 days
This is the required time.

Question 22.
Before the year 1900 the activity per unit mass of atmospheric carbon due to the presence of ¹⁴C averaged about 0.255 Bq per gram of carbon. (a) What fraction of carbon atoms were ¹⁴C? (b) An archaeological specimen containing 500 mg of carbon, shows 174 decays in one hour. What is the age of the specimen, assuming that its activity per unit mass of carbon when the specimen died was equal to the average value of the air? Half-life of 14C is 5730 years?
Answer:
0.693
Data: T_1/2 = 5730y ∴ λ = 0.6935730×3.156×107 s−1
= 3.832 × 10^-12 s^-1, A = 0.255 Bq per gram of carbon in part (a); M = 500 mg = 500 × 10^-3 g,
174 decays in one hour 1743600 dis/s = 0.04833 dis/s in part (b) (per 500 mg].

(a) A = Nλ ∴ N = Aλ=0.2553.832×10−12
= 6.654 × 10¹⁰
Number of atoms in 1 g of carbon = 6.02×102312
=5.017 × 10²²
5.017×10226.654×1010 = 0.7539 × 10¹²
∴ 1 ¹⁴C atom per 0.7539 × 10¹² atoms of carbon
∴ 4 ¹⁴C atoms per 3 × 10¹² atoms of carbon

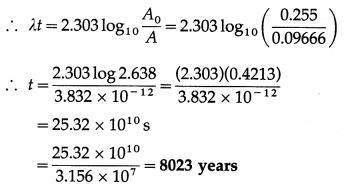

(b) Present activity per gram =
= 0.09666 dis/s per gram
A₀ = 0.255 dis/s per gram
Now, A(t) = A₀e^-λt

This is the required quantity.

Question 23.
How much mass of ²³⁵U is required to undergo fission each day to provide 3000 MW of thermal power? Average energy per fission is 202.79 MeV
Answer:
Data: Power = 3000 MW = 3 × 10⁹ J/s
∴ Energy to be produced each day
=3 × 10⁹ × 86400 J each day
= 2.592 × 10¹⁴ J each day
Energy per fission = 202.79 MeV
= 202.79 × 10⁶ × 1.6 × 10^-19 J = 3,245 × 10^-11 J
∴ Number of fissions each day
= 2.592×10143.245×10−11 × 10²⁴ each day
0.235 kg of ²³⁵U contains 6.02 × 10²³ atoms
7988 x 1024
∴ M = (7.988×10246.02×1023) (o.235) = 3.118 kg
This is the required quantity.

Question 24.

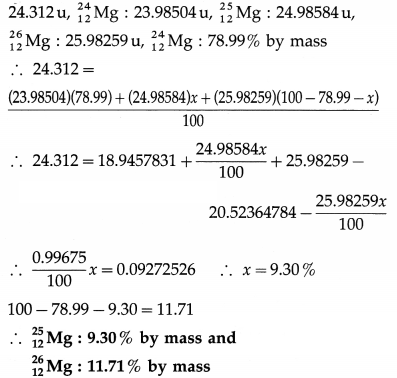

In a periodic table the average atomic mass of magnesium is given as 24.312 u. The average value is based on their relative natural abundance on earth. The three isotopes and their masses are 2412Mg (23.98504 u), 2512Mg (24.98584 u) and 2612Mg (25.98259 u). The natural abundance of 2412Mg is 78.99% by mass. Calculate the abundances of other two isotopes.
[Answer: 9.3% and 11.7%]
Answer:
Data : Average atomic mass of magnesium =

Use your brain power (Textbook Page No. 336)

Question 1.
Why don’t heavy nuclei decay by emitting a single proton or a single neutron?
Answer:
According to quantum mechanics, the probability for these emissions is extremely low.

Download PDF

Maharashtra Board Solutions Class 12 Physics: Chapter 15- Structure of Atoms and Nuclei

Download PDF: Maharashtra Board Solutions Class 12 Physics: Chapter 15- Structure of Atoms and Nuclei PDF

Chapterwise Maharashtra Board Solutions Class 12 Physics :

• Chapter 1- Rotational Dynamics
• Chapter 2- Mechanical Properties of Fluids
• Chapter 3- Kinetic Theory of Gases and Radiation
• Chapter 4- Thermodynamics
• Chapter 5- Oscillations
• Chapter 6- Superposition of Waves
• Chapter 7- Wave Optics
• Chapter 8- Electrostatics
• Chapter 9- Current Electricity
• Chapter 10- Magnetic Fields due to Electric Current
• Chapter 11- Magnetic Materials
• Chapter 12- Electromagnetic Induction
• Chapter 13- AC Circuits
• Chapter 14- Dual Nature of Radiation and Matter
• Chapter 15- Structure of Atoms and Nuclei
• Chapter 16- Semiconductor Devices

FAQs

About Maharashtra State Board (MSBSHSE)

The Maharashtra State Board of Secondary and Higher Secondary Education or MSBSHSE (Marathi: महाराष्ट्र राज्य माध्यमिक आणि उच्च माध्यमिक शिक्षण मंडळ), is an autonomous and statutory body established in 1965. The board was amended in the year 1977 under the provisions of the Maharashtra Act No. 41 of 1965.

The Maharashtra State Board of Secondary & Higher Secondary Education (MSBSHSE), Pune is an independent body of the Maharashtra Government. There are more than 1.4 million students that appear in the examination every year. The Maha State Board conducts the board examination twice a year. This board conducts the examination for SSC and HSC.

The Maharashtra government established the Maharashtra State Bureau of Textbook Production and Curriculum Research, also commonly referred to as Ebalbharati, in 1967 to take up the responsibility of providing quality textbooks to students from all classes studying under the Maharashtra State Board. MSBHSE prepares and updates the curriculum to provide holistic development for students. It is designed to tackle the difficulty in understanding the concepts with simple language with simple illustrations. Every year around 10 lakh students are enrolled in schools that are affiliated with the Maharashtra State Board.

Read More

• NCERT Solutions for 11th Class Chemistry: Chapter 2-Structure of Atom
• NCERT Solutions for 9th Class Science : Chapter 4 Structure of the Atom
• NCERT Solutions for 12th Class Physics: Chapter 12-Atoms
• The Creek Planet School – Orbit Campus
• Sources of Energy

IndCareer Board Book Solutions App

IndCareer Board Book App provides complete study materials for students from classes 1 to 12 of Board. The App contains complete solutions of NCERT books, notes, and other important materials for students. Download the IndCareer Board Book Solutions now.
