ISC Class 12 Geometrical and Mechanical Drawing Syllabus

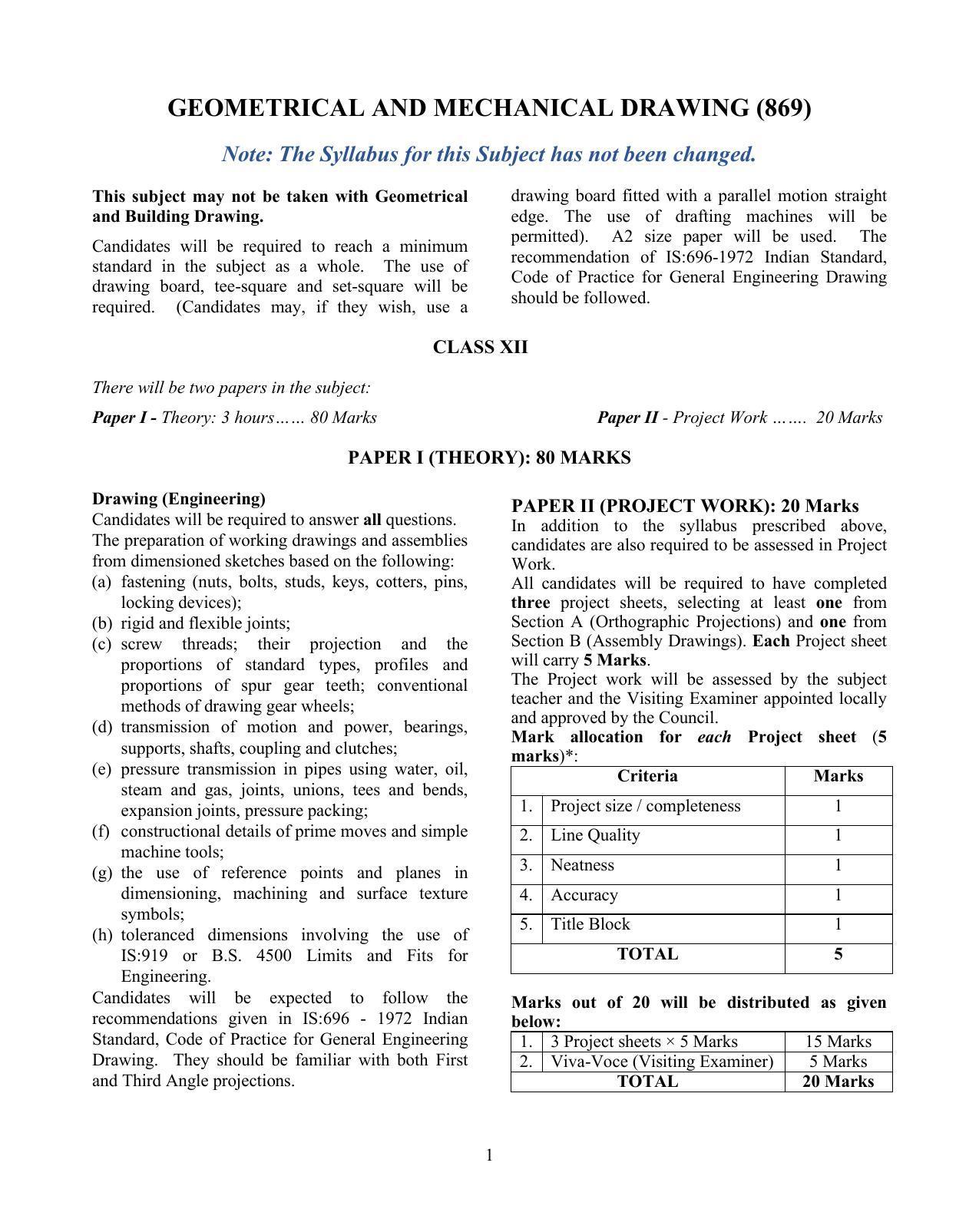

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 1

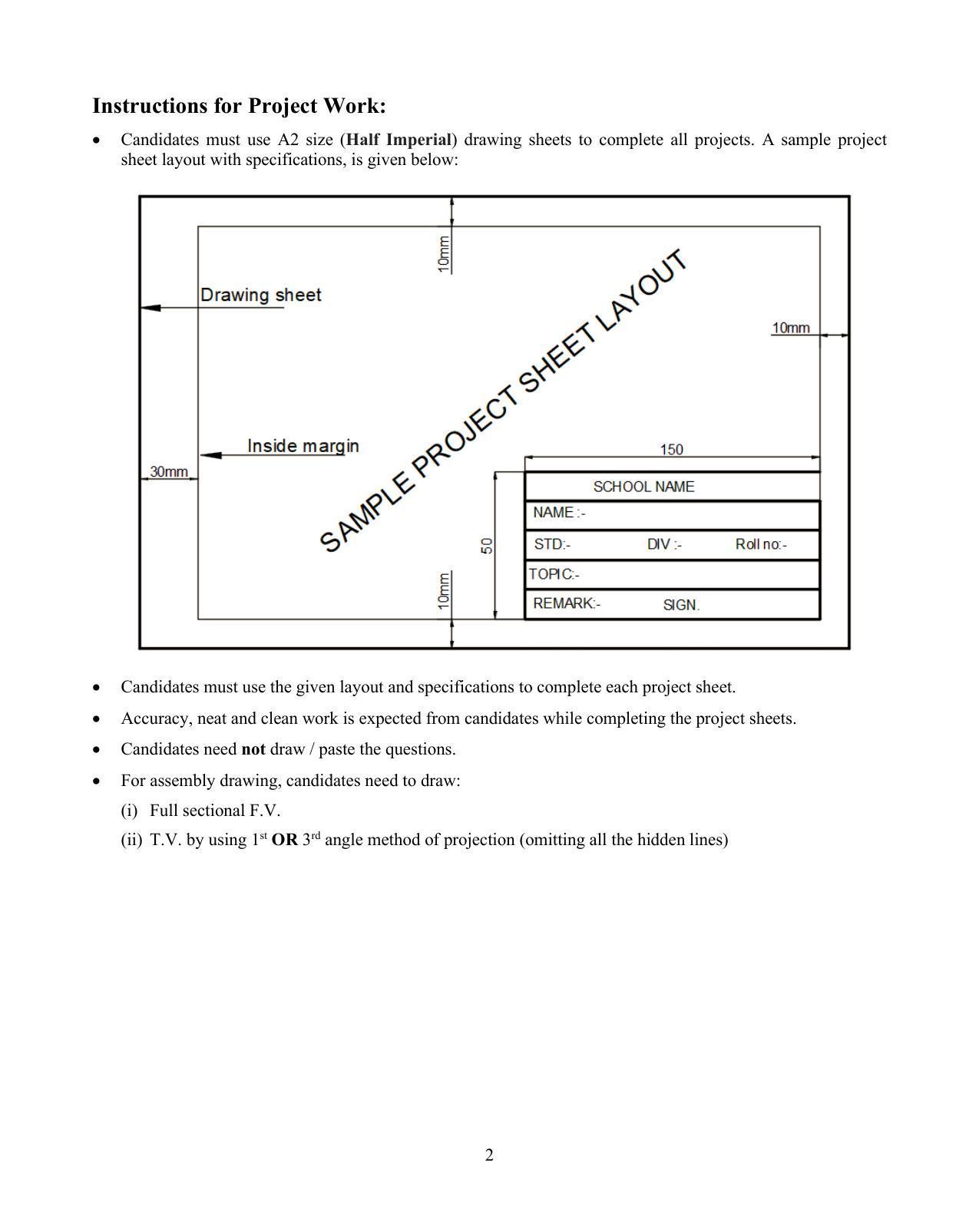

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 2

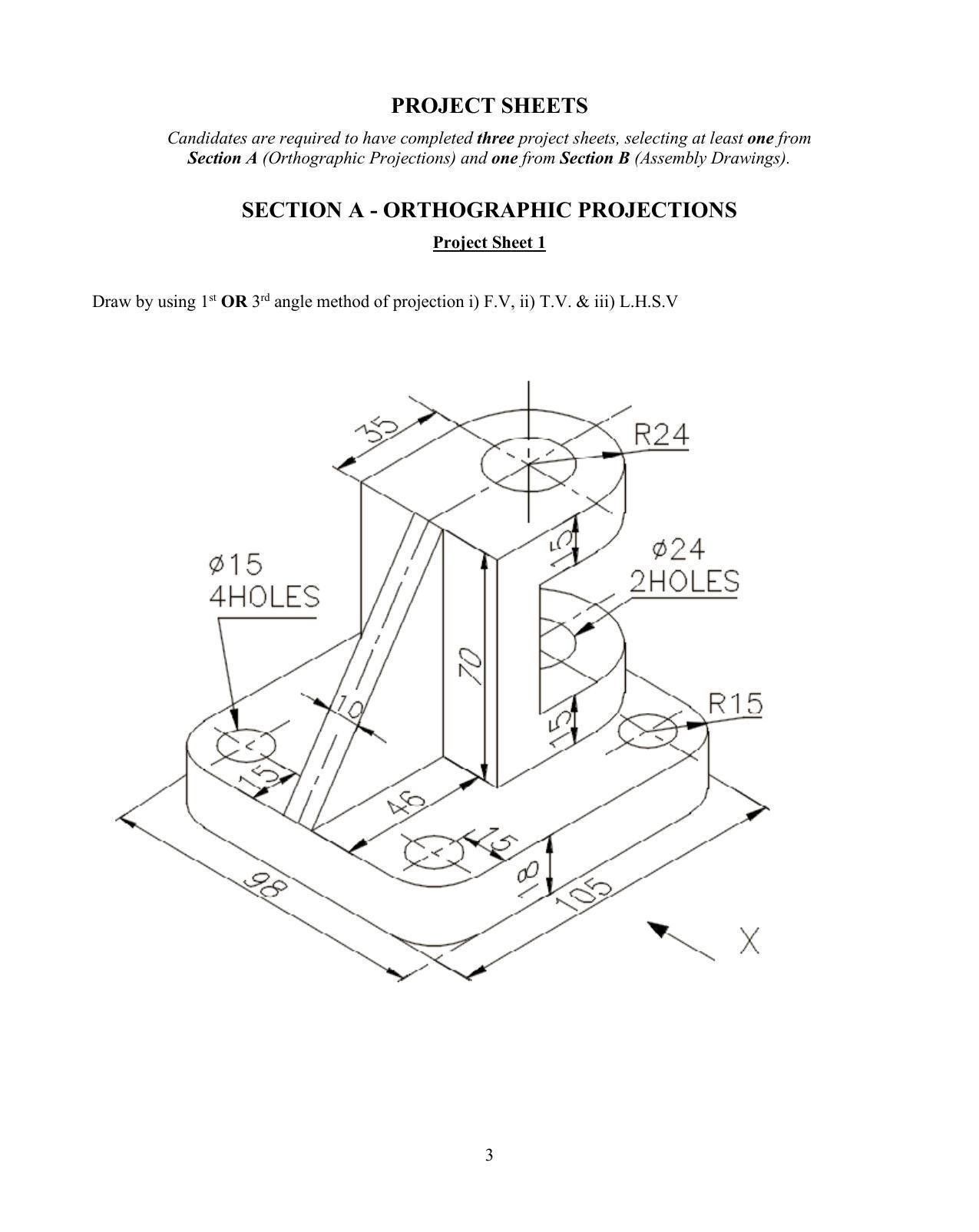

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 3

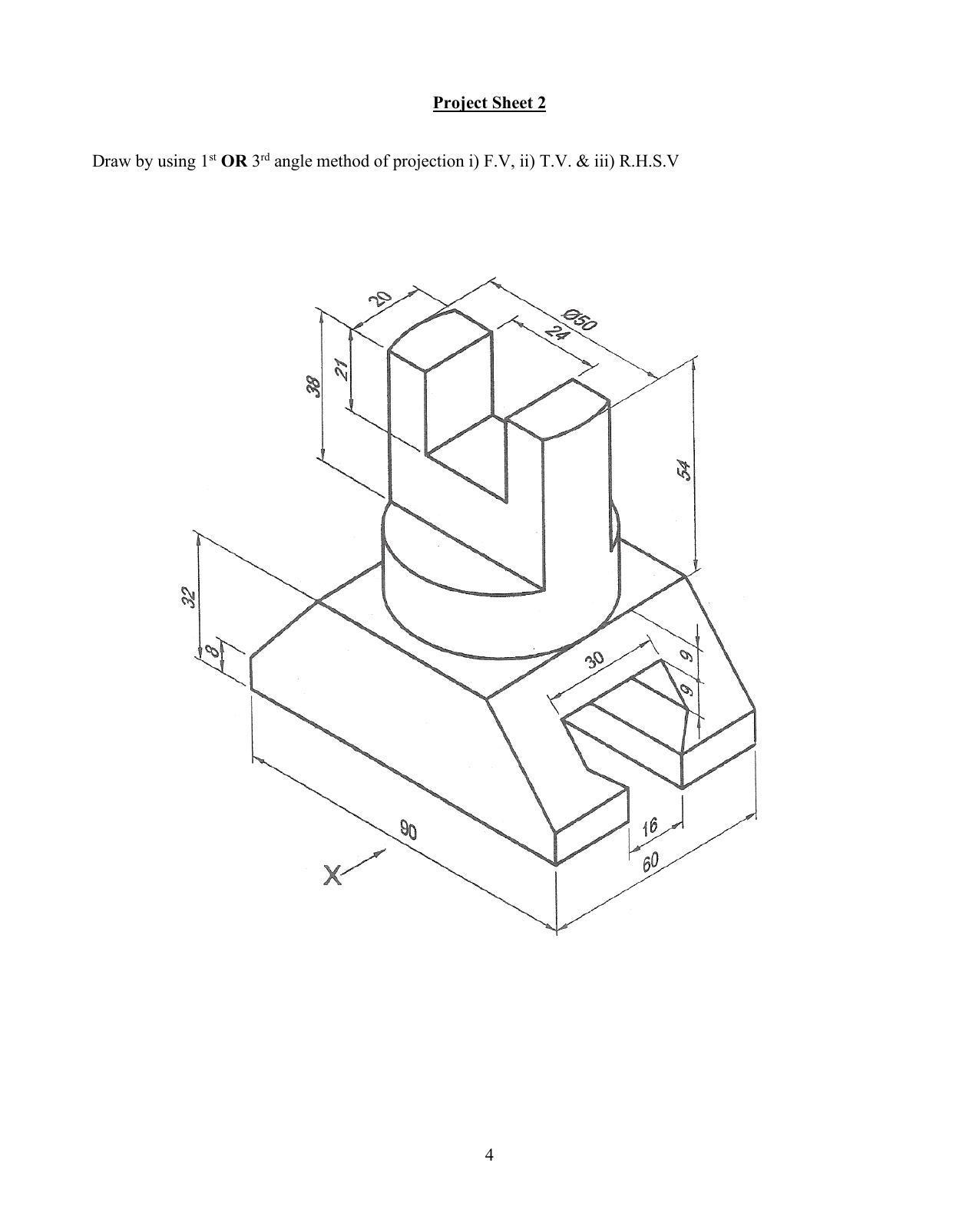

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 4

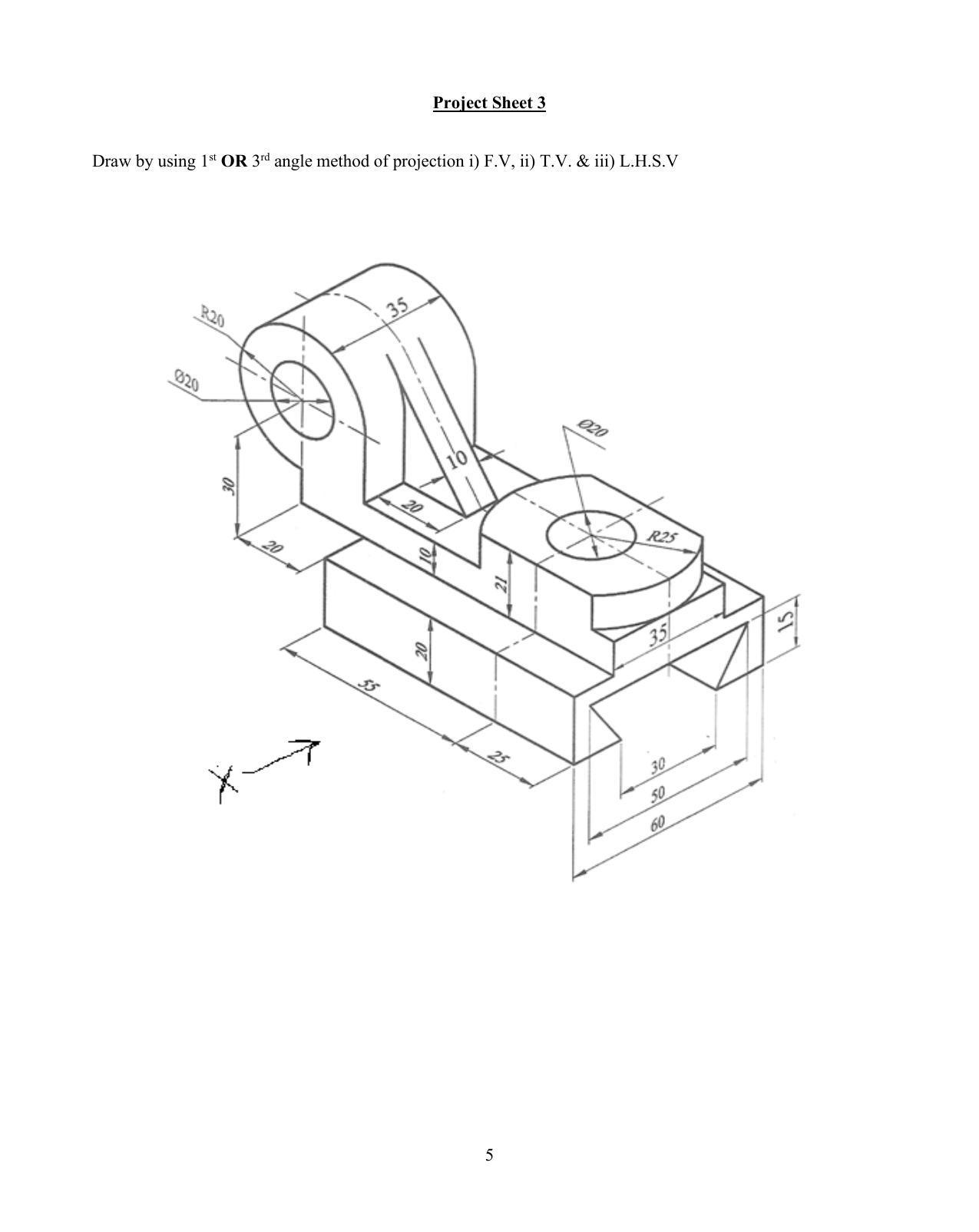

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 5

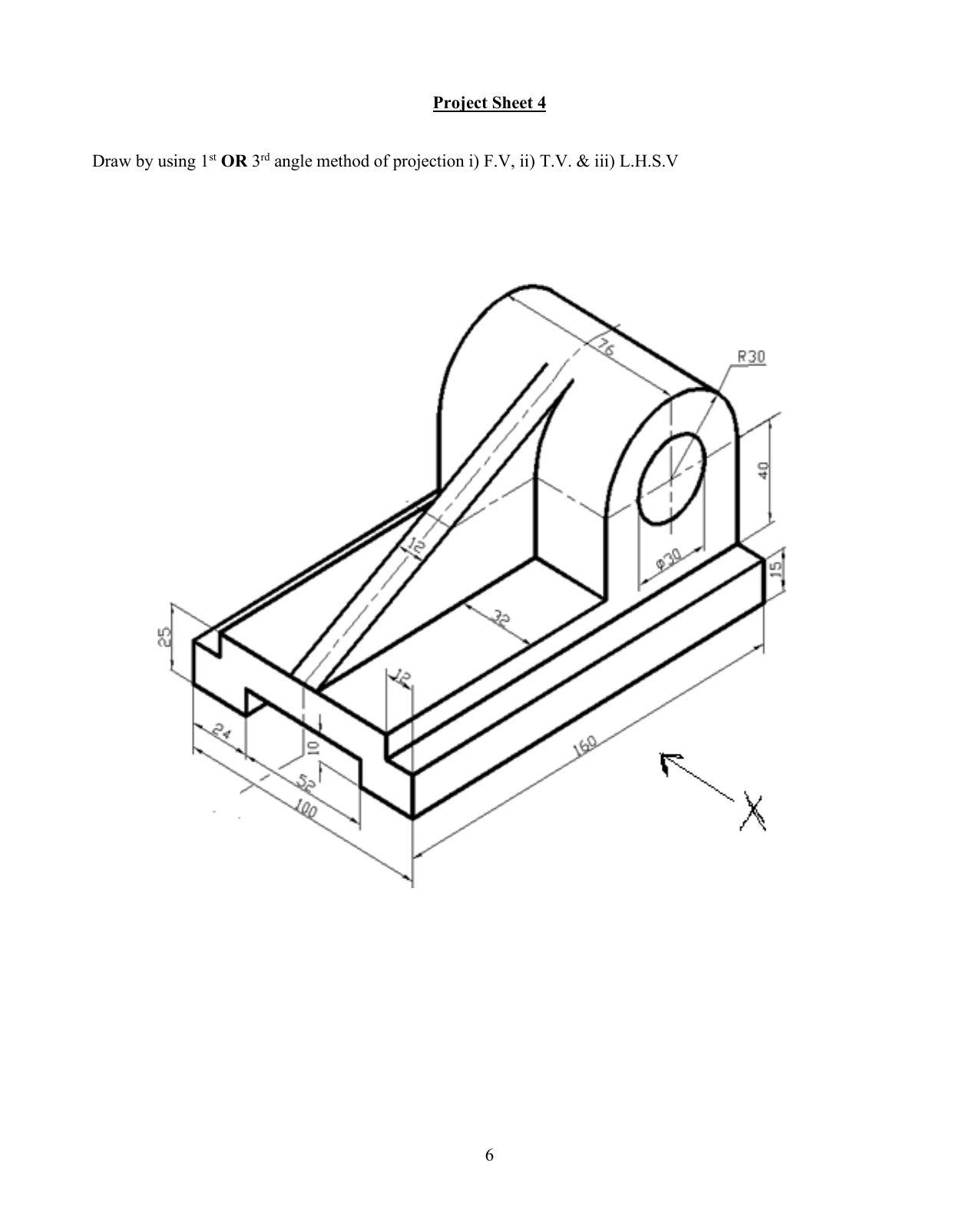

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 6

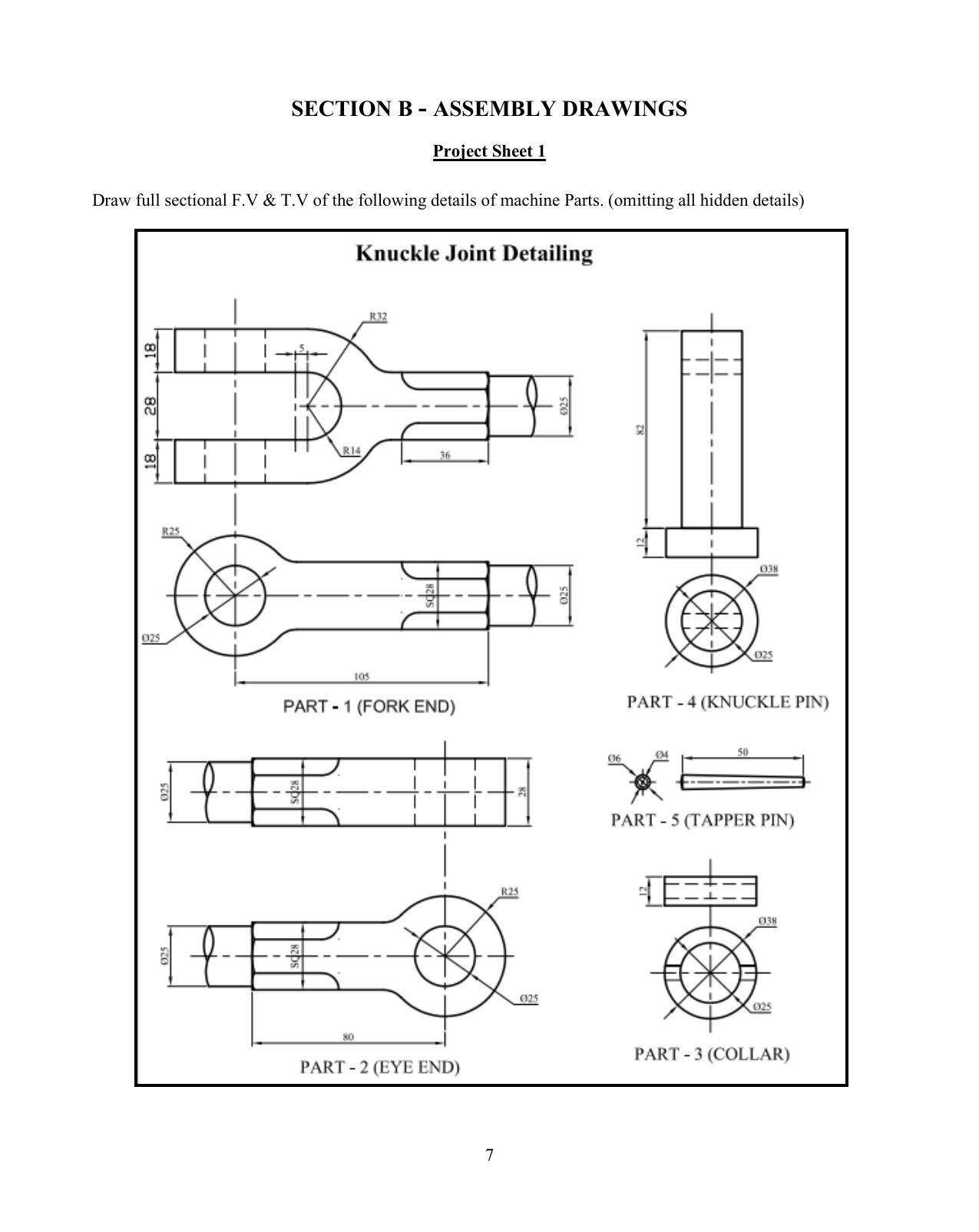

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 7

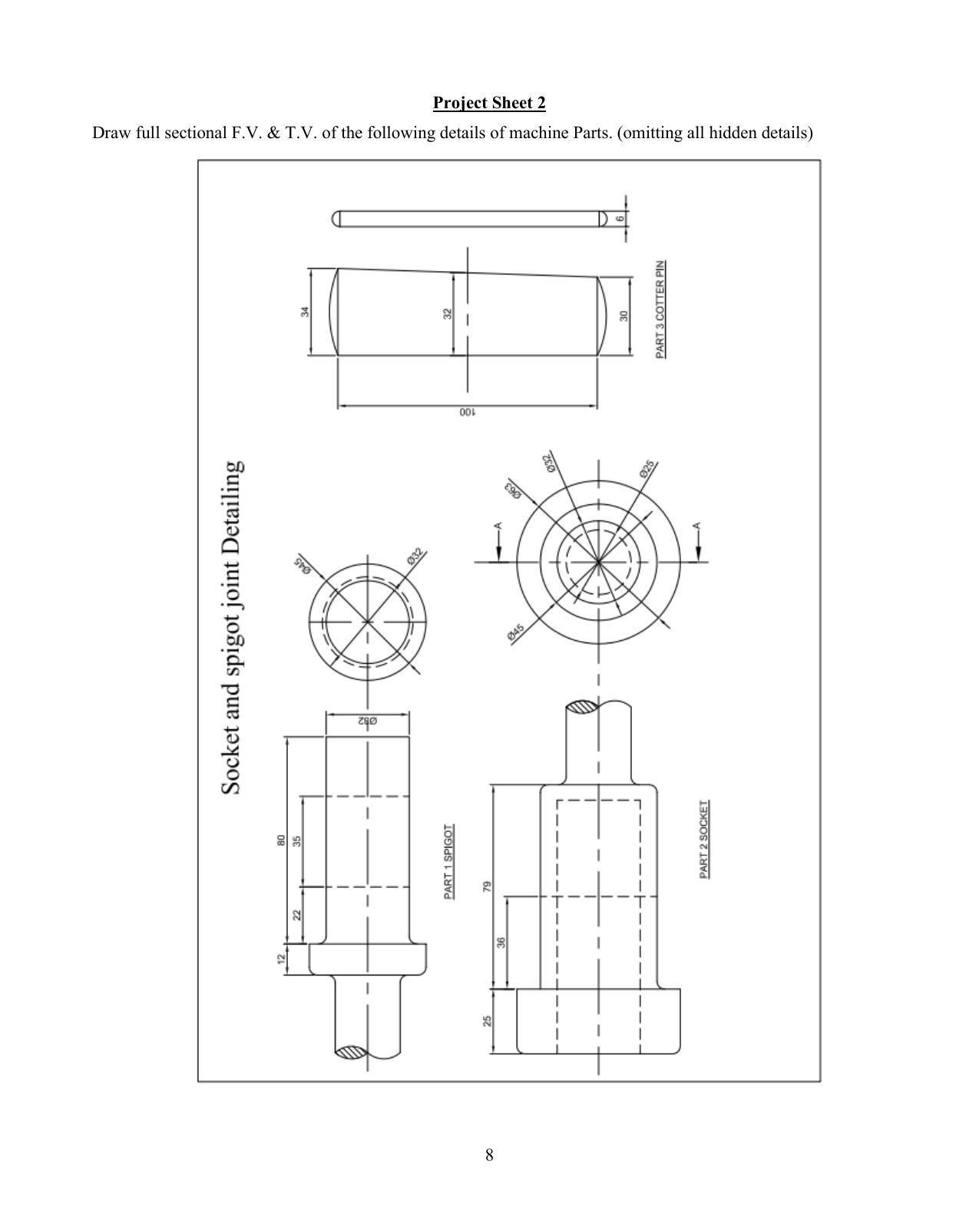

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 8

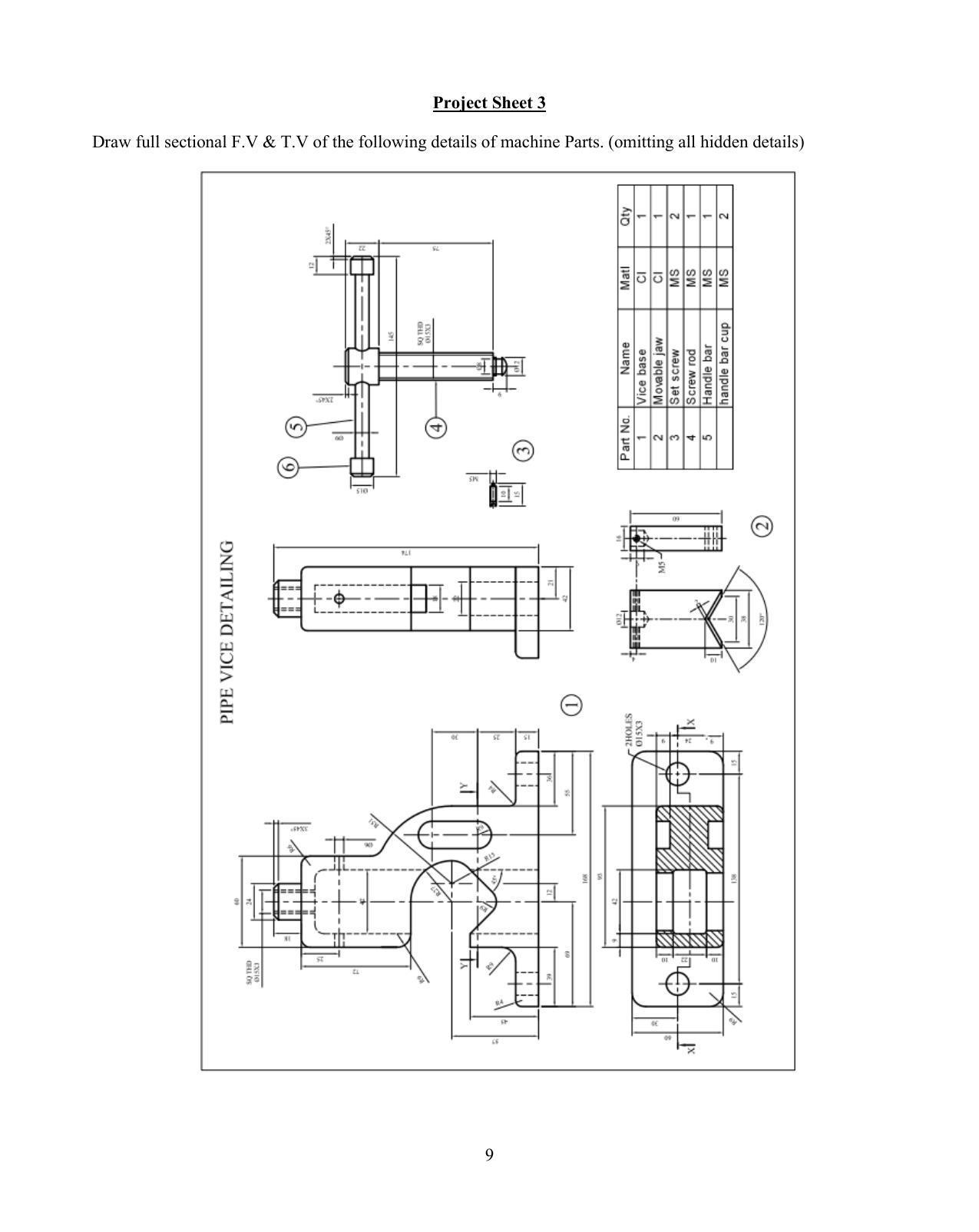

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 9

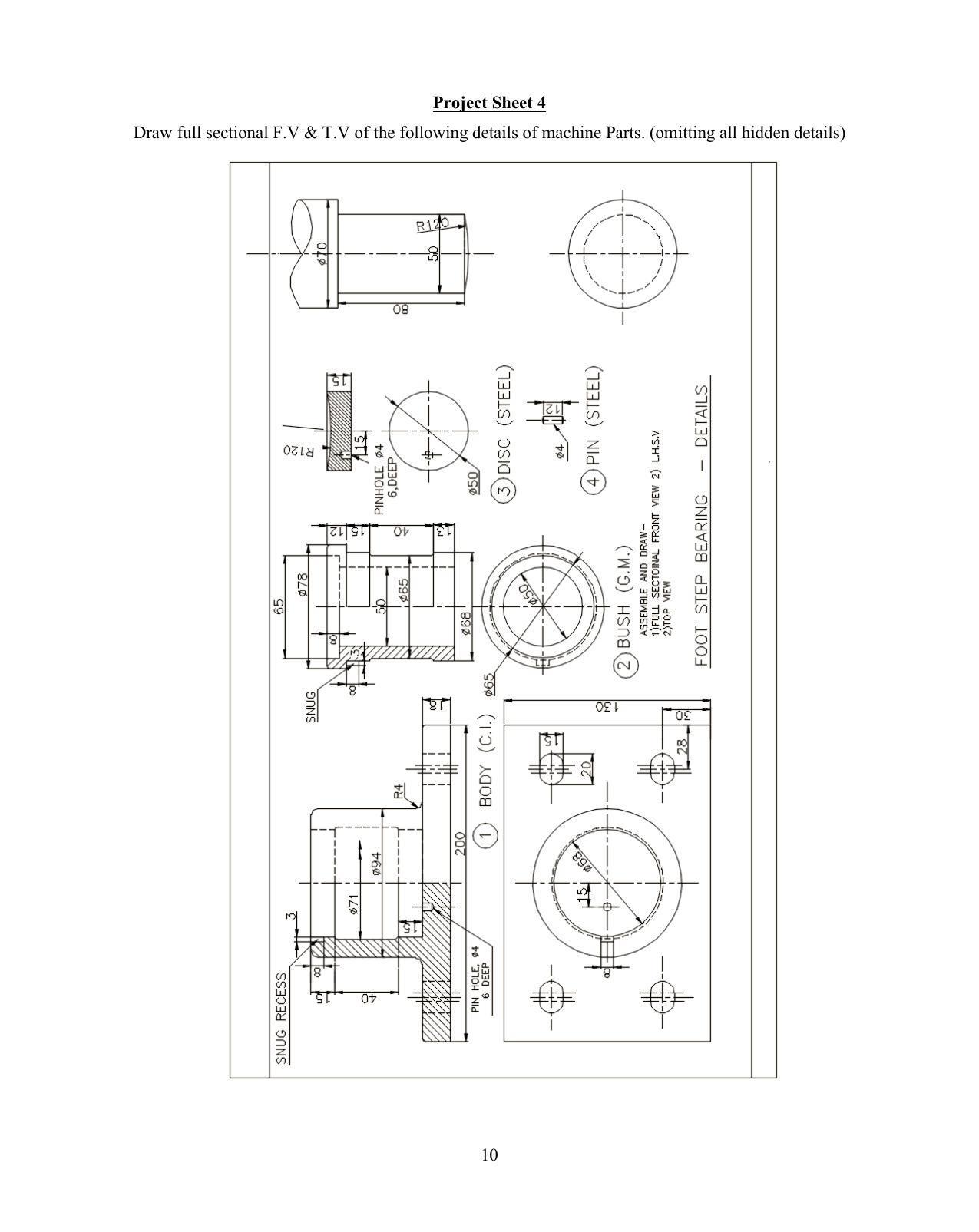

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 10

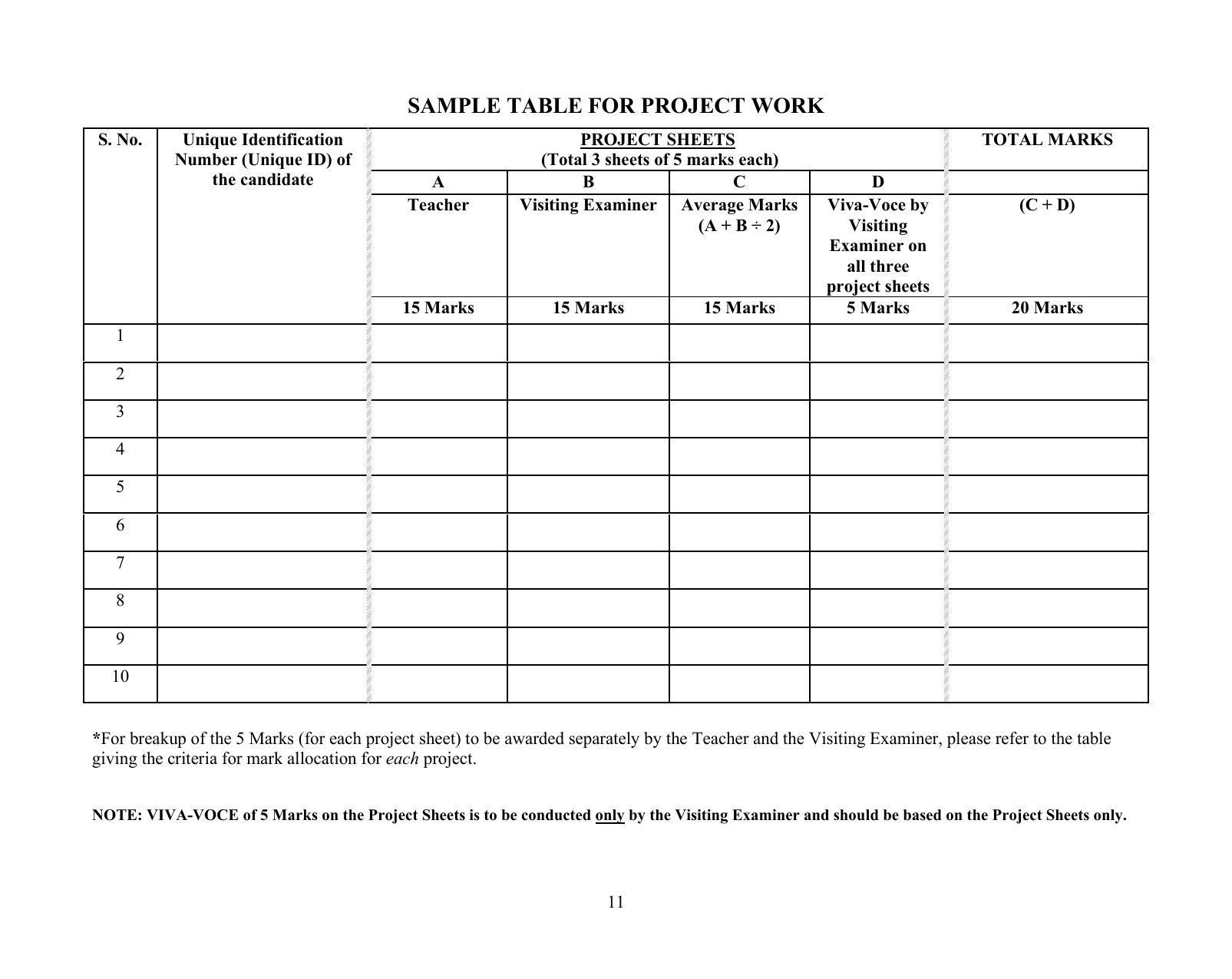

ISC Class 12 Geometrical and Mechanical Drawing Syllabus - Page 11
